Small CNC Machining Machine

New energy CNC precision carving series

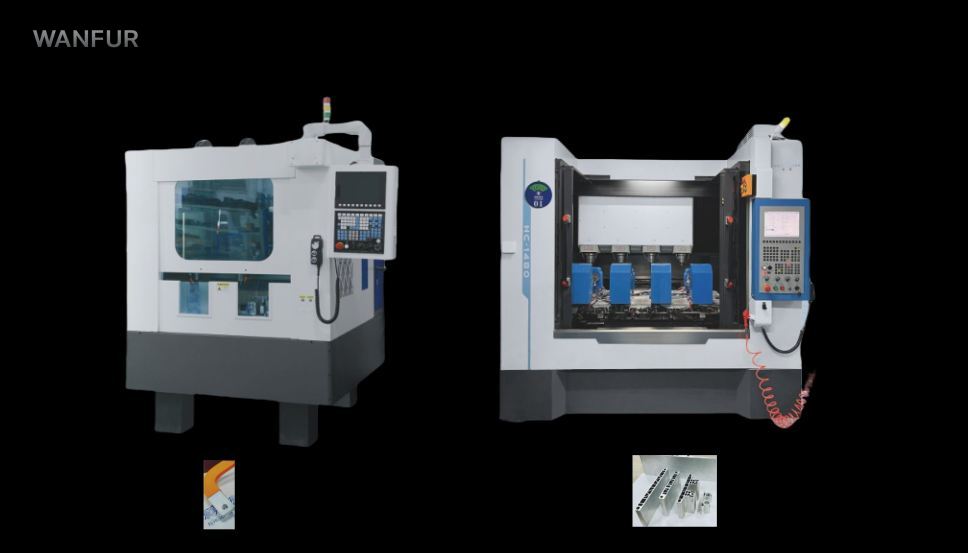

Left Section: Equipment Description

New energy copper aluminum busbar doubtehead CNC milling Machine

Replacement for laser cutting, punching (hydraulic press) + molds

Equipped with the Taiwan Baoyuan system and a unique XYZ axis suspension structure, equipped with dual high-speed electric spindles (accuracy ± 0.01mm), the fixed platform is compatible with precision vacuum/electrical fixtures, specializing in deformation-resistant processing of slender parts.
Optimize dry cutting technology to achieve efficient processing of copper and aluminum hard materials. The nickel cutting edge is free of burrs and edges, perfectly replacing stamping/laser processes.
It supports programming chamfers on both sides, eliminates batch edges, and ensures stability in tensile testing.

Right Section: Equipment Description

Four head CNC precision carving machine

This equipment adopts a four station independent processing head design, supporting synchronous processing of multiple workpieces, greatly improving production efficiency.
The single head machining stroke is 1000mm (X-axis) × 350mm (Y-axis) × 400mm (Z-axis), which can adapt to the precision machining requirements of large-sized or complex structured workpieces.
It has the advantages of high precision and high stability, suitable for mass production and complex surface processing scenarios, and is the preferred equipment for automated and efficient production.

Standard Configuration Instructions

Project	New energy CNC precision carving series
Voltage	380V
Power	10.5KW
Compressed Air Pressure	0.5–0.8MPa
Machine Size	L1250W1250H1960mm
Weight	3000–6000KG
Control System	Baoyuan / LNC / SYNTEC

Small CNC machining machines are revolutionizing industries by offering precision, flexibility, and efficiency. These machines are not just limited to basic tasks like drilling holes or machining busbars; they can perform a wide variety of operations across different sectors. From milling and turning to engraving and prototyping, small CNC machines are essential for producing high-quality parts and components in industries such as automotive, electronics, medical, and aerospace.

At Wanfur, we proudly offer an exclusive small CNC machining machine that is designed to cater to various manufacturing needs. Unlike traditional CNC machines, our model stands out for its versatility and ability to handle a wide range of materials and processes. Whether you need intricate parts, custom components, or rapid prototypes, our machine can help you achieve precision and efficiency.

Wanfur is the only company offering this advanced small CNC machining machine, providing unmatched quality and capability. We invite you to visit our factory and see the machine in action. Our team will be happy to demonstrate its full potential and show how it can benefit your business.
