Friction Stir Welding Machine

New Energy Copper Aluminum Bar Rotating Friction Stir Welding Equipment

Equipment Description

This equipment is a fully automatic solid-state friction stir welding machine, compatible with laser cutting and CNC cutting.

It enables integrated production of copper and aluminum busbars, including:

Automatic feeding
Welding
Ear cutting
Surface polishing

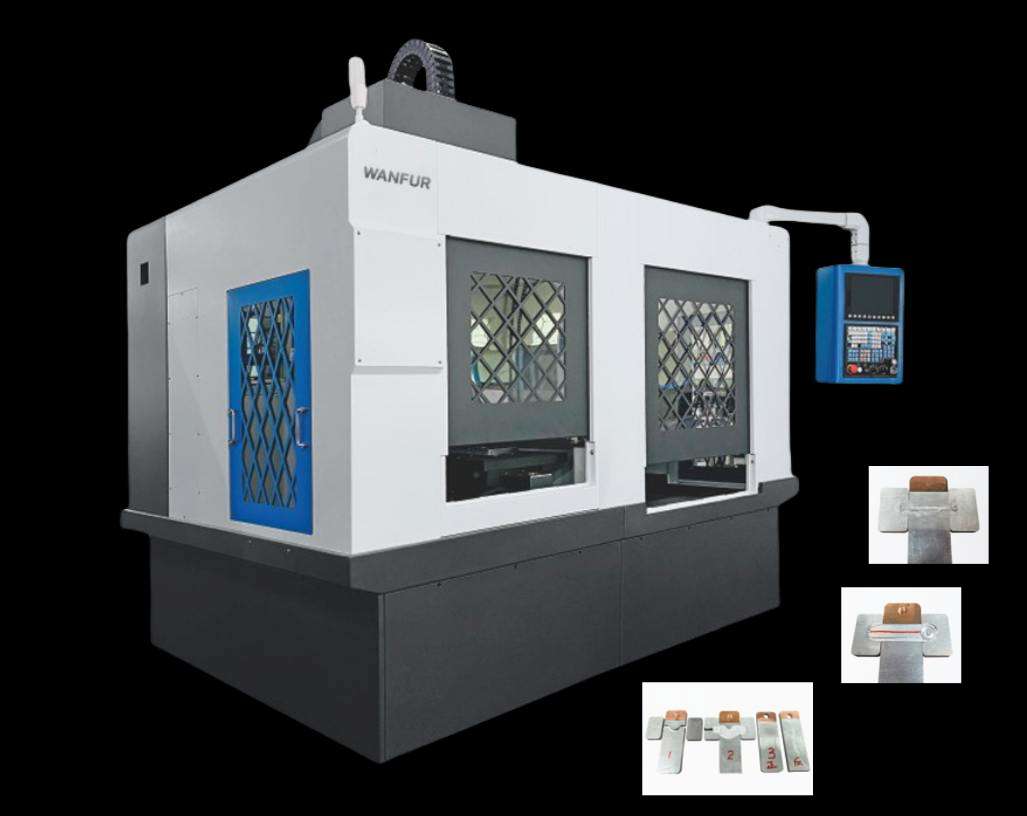

FRICTION STIR WELDING EOUIPMENT

Key Advantages

Welding strength exceeds 80% of the raw material
Uses low-temperature solid-phase welding to:
- Reduce insulation stripping length
- Lower post-processing costs
Uses AL1060 aluminum with PA insulation layer in the middle section
Copper-aluminum composite (or AL6061T6) at both ends for:
- Increased locking strength
- Enhanced oxidation resistance
- Better fast-charging performance
Helps new energy companies reduce costs and improve production efficiency

Equipment Parameters

Parameter	Specification
Project	New energy copper aluminum bar rotating friction stir welding equipment
Voltage	380V
Power	35kW
Compressed Air Pressure	0.5 – 0.8 MPa
Machine Size	L2300 × W2200 × H2000 mm
Machine Weight	6000KG
Control System	LNC System, Taiwan

New Solution: Automatic Friction Stir Welding
Our technical team has developed a fully automated friction stir welding process for aluminum busbars, which includes:

Automatic feeding, welding, ear cutting, and polishing integration
Post-welding connection strength exceeding 80% of the original material
Low-temperature solid-phase welding allowing minimal insulation stripping, thereby reducing subsequent insulation processing costs

Additionally, the midsection utilizes AL1060 aluminum extrusion with PA insulation layer, while both ends are welded with copper-aluminum composite material or AL6061T6. This enhances screw locking, compression strength, and oxidation resistance, meeting the requirements for fast charging performance.

We are confident this solution will help new energy companies improve efficiency and reduce costs.
